Description

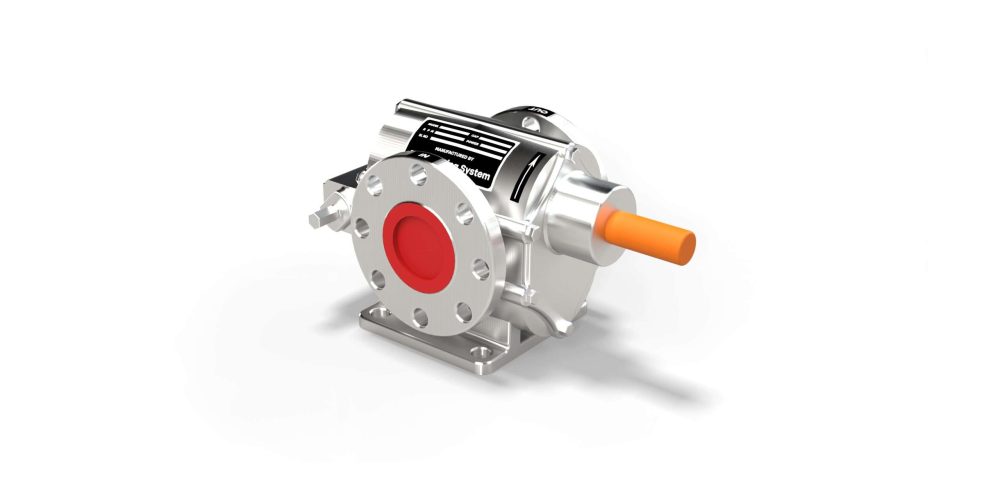

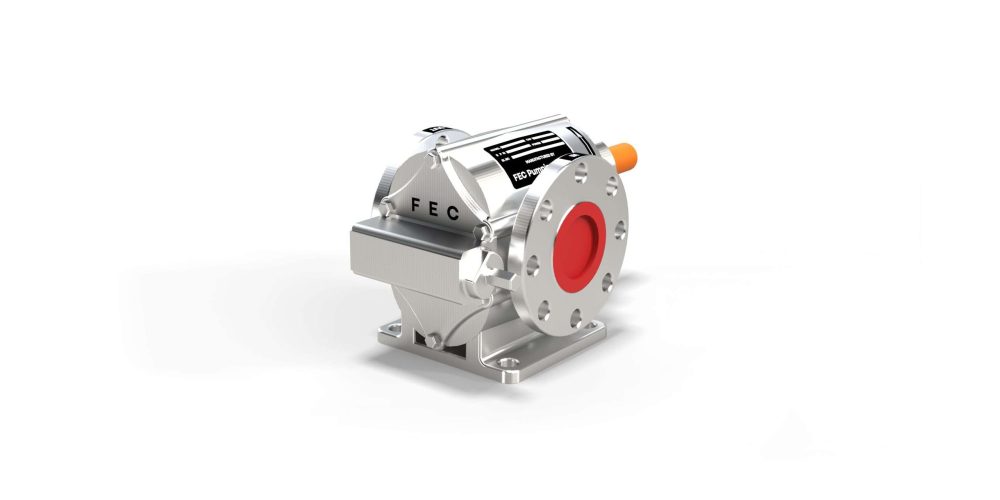

Combines the Quality of Both Simplicity & Sturdiness in the 3-part Design wherein the Driven & Driven Gear Assembly dong with Bearing Are housed inside the Main-Body (Casing) Itself allowing the Achievement of both alignment & Accuracy Resulting a trouble-free Long Service Life.
Applications
- Solvents & Base Chemical Transfer
- Fire Fighting Foam (AFFF) Transfer
- Edible oil Transfers in food Industry
- Caustic Bases Transfer
- Insecticides / Pesticides Transfer
- Surfactant Transfer
- Liquid Transfers
- Paint / Paint Resin Transfer
- Organic Liquid Transfer
- Sugar Syrup Transfer
- Caustic Bases Transfer
Specification
| Capacity | 20LPM To 2000LPM |
| Pressure | Max 15 Kg |
| Size | 3/4 Inch To 6 Inch |
| Temperature | Max 200 C |
| Mounting | Horizontal Foot Mtg / Trolley Type |
| Driven | Direct Coupled / Gear Box / V belt Pulley |
| Sealing | Mechanical Seal / Gland Packing |
| Pressure relief Valve | Externally adjustable integral Relief valve |
| Gear Type | Spur / Helical |
| MOC of Gear & Shaft | Stainless Steel |
| MOC of Body & Cover | Stainless Steel |
| Bearing | Bi-Metallic Bronze Bush/Teflon Bushes DU-Bush Sleeved S.S Bushes |
