Description

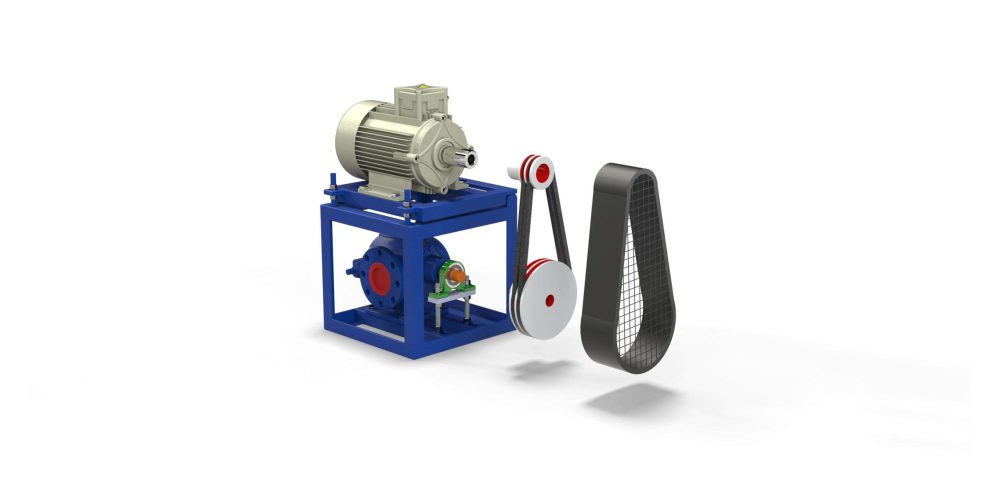

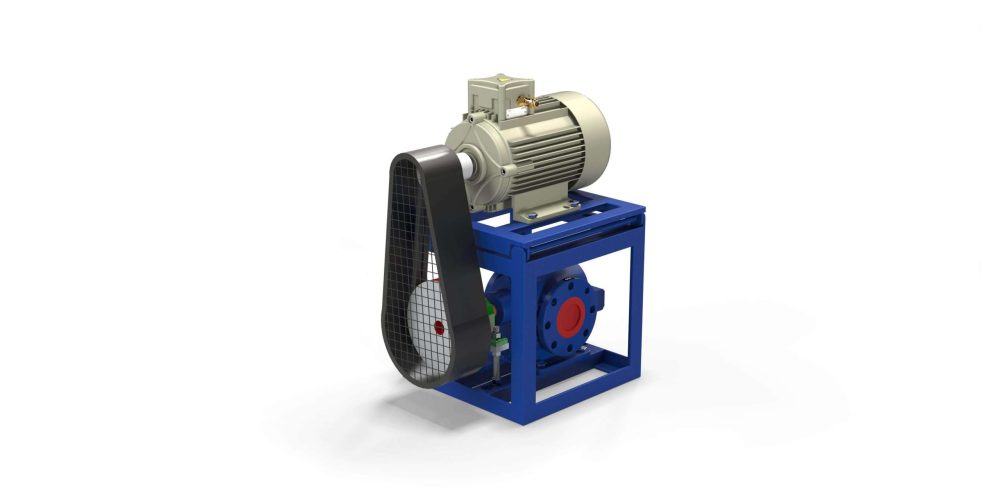

M-series Pillow Block bearing support pumps are specially designed to aid pulley driven applications. These have external pillow block bearing support which is present on the pump shaft and in between pump & it’s pulley. Even if the belt is adjusted, the alignment load of the pump shaft will not affect the pump bushes – this is because of the presence of the pillow block bearing. This whole process ensures a trouble free long run for the pump.
Specification
| Capacity | 20LPM To 2,470 PM |
| Pressure | Max 25 Kg |
| Size | 1 Inch To 8 Inch |
| Temperature | Max 200 C |
| Mounting | Horizontal Foot Mtg / Trolley Type |
| Driven | Direct Coupled / Gear Box / V belt Pulley |
| Sealing | Mechanical Seal / Oil Seal / Gland Packing |
| Pressure relief Valve | Externally adjustable integral Relief valve |
| Gear Type | Spur / Helical |
| MOC of Gear & Shaft | EN-24 Harden & Ground |
| MOC of Body & Cover | Graded Caste Iron & Ground |
| Bearing | Bi-Metallic Bronze Bushes |
